Description

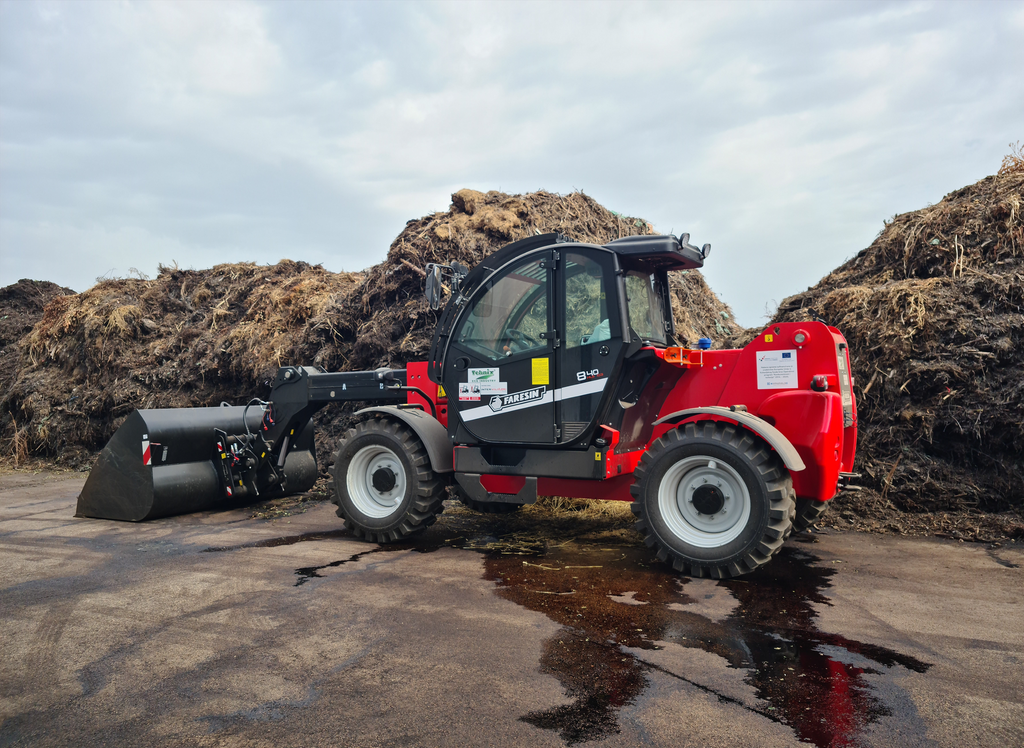

The Faresa loader is a robust and reliable machine designed for efficient handling of materials on construction sites, farms or in industrial plants. The powerful engine provides outstanding power and performance, while the intuitive controls enable precise maneuvering even in tight spaces. The versatility of this loader allows the use of different attachments for various tasks, such as loading, transferring and spreading material. With its durability and adaptability, the Fares loader is an invaluable aid in any work environment.

Technical specifications

M O D E L		6.26 C	7.30 C	8.40 HLS
DIESEL ENGINE POWER	kW	52	75	103
DIESEL ENGINE VOLUME	ccm	3400	3600	4040
LIFTING HEIGHT	mm	6000,0	7000,0	8000,0
LIFTING CAPACITY	kg	2600,0	3000,0	4000,0
MAXIMUM CAPACITY AT MAXIMUM SPEED	kg	1700,0	2000,0	3000,0
MAXIMUM HORIZONTAL REACH	mm	3200,0	3700,0	4200,0
TURNING RADIUS	mm	3250	3870	4150
MAXIMUM SPEED	km/h	30	40	40
FUEL TANK	L	80,0	120,0	120,0
HYDRAULIC OIL TANK	L	70,0	150,0	150,0
HEIGHT - A	mm	1935	2260	2400
WIDTH - B	mm	1890	2117	2368
TRACK / TRACK - C	mm	1550	1602	1900
HEIGHT FROM FLOOR TO CHASSIS - D	mm	220	350	390
FRONT OVERHEAD - E	mm	990	1046	1008
REAR CURTAIN - G	mm	520	684	821
WHEEL DISTANCE - F	mm	2525	2950	2950
LENGTH WITHOUT REAR HOOK - H	mm	4035	4680	4771
TOTAL LENGTH WITH HOOK - I	mm	4198	4781	4849
CABIN WIDTH - L	mm	960	960	960
WHEELS		12-16.5	405/70-20	405/70-24
TOW HOOK ON THE BACK	T	6,0	6,0	6,0
MANUAL 6-SPEED DIVERTER
AUTOMATIC HYDROSTATIC TRANSMISSION
WORKING, ROAD AND ROTATING LIGHTS
AIR CONDITIONED AND HEATED CABIN		QUEEN CAB
3 DRIVE AXLE MANAGEMENT OPTIONS		PREDNJA - PREDNJA I STRAŽNJA - "PASJI HOD"	PREDNJA - PREDNJA I STRAŽNJA - "PASJI HOD"	PREDNJA - PREDNJA I STRAŽNJA - "PASJI HOD"
METHOD OF TIGHTENING THE WORKING CONNECTIONS		EURO COUPLING WITH HYDRAULIC COUPLING	EURO COUPLING WITH HYDRAULIC COUPLING	EURO COUPLING WITH HYDRAULIC COUPLING
WORKING CONNECTIONS		FORK CARRIER WITH FORKS / LOADING KIBLA LARGE / LOADING KIBLA SMALL / VEGETATION GRAB	FORK CARRIER WITH FORKS / LOADING KIBLA LARGE / LOADING KIBLA SMALL / VEGETATION GRAB	FORK CARRIER WITH FORKS / LOADING KIBLA LARGE / LOADING KIBLA SMALL / VEGETATION GRAB

Advantages and benefits

low fuel consumption and excellent manipulative and driving characteristics
fully automatic hydrostatic transmission with double fnr control system and servo controlled brake system
automatic reduction of driving speed depending on the height of the raised telescope and automatic parking brake
queen cab made according to the rops-fops standard with a multifunctional display with diagnostics
the possibility of registering the machine for movement on public roads
the possibility of purchasing different work connections"
