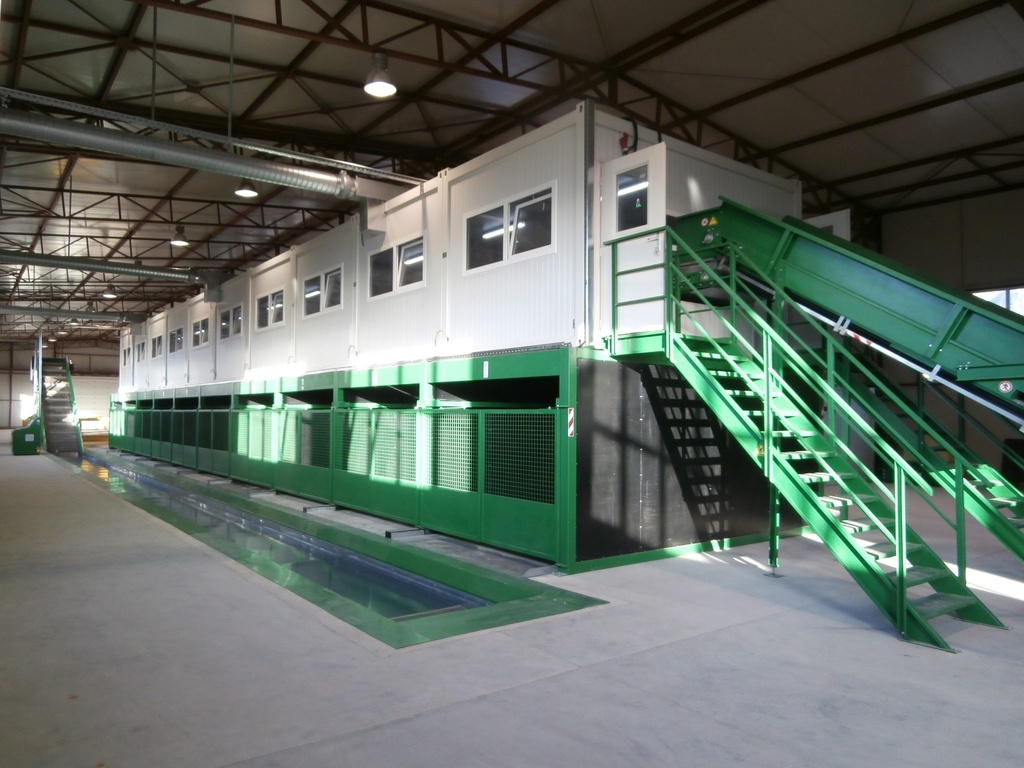

    Sorting cabins for manual separation of waste

    Sorting cabins for manual separation of waste

    SKU:
    N/A

    The sorting line for manual waste separation is made from container units that are stacked in a sorting tunnel of the required length. The cabins are designed as container modules connected into one technological unit – a sorting tunnel.

    Contact Us
    Description

    The first and last cabins are closed at the ends by a panel wall with an opening for the passage of the sorting conveyor that passes through the middle of the sorting tunnel.

    On both sides of the conveyor, there are special discharge pipes with a hinged bottom, two discharge pipes for each worker, or four pipes in each cabin. The discharge pipes are used to discharge the sorted, i.e. manually separated material into the sorting boxes under the cabins.

    The pipes also serve as the load-bearing structure of the sorting conveyor. The cabins are ventilated, air-conditioned and equipped with a complete electrical installation (lighting, sound system, signal lights, etc.). The discharge pipes contain a hinged bottom, so each discharge pipe can be opened or closed individually.

    Such a system ensures that the sorted material does not fall into the boxes while the automatic pressure plate is in operation.

    For access to the cabins, steel stairs with a landing were built, one on each side of the sorting conveyor.

    Advantages and benefits
    • Efficient manual sorting of waste: Container booths allow workers to manually separate different types of materials from the waste as it passes through the sorting tunnel. This process enables precise sorting and separation of recyclable material from the rest of the waste.
    • Air conditioning and ventilation of the cabins: The cabins are equipped with an air conditioning and ventilation system, which ensures a comfortable working environment for the workers. This is especially important when dealing with long shifts and working in different weather conditions.
    • Precise management of separated material: The system of discharge pipes with a hinged bottom enables precise management of sorted material. Each discharge tube can be opened or closed individually, thus preventing unwanted material from falling into the pits while the automatic pressure plate is in operation.
    • Space optimization and modular design: Container modules make the sorting tunnel modular, which allows the line length to be adjusted according to needs. This modular approach facilitates the optimization of the work space and adaptation to the waste processing capacity.
    • Complete equipment and safe access: The cabins are equipped with a complete electrical installation, including lighting, sound system, signal lights, etc. Steel stairs with a landing provide workers with safe access to the cabins on both sides of the sorting conveyor, thus ensuring their safety and facilitating access to workplaces.


    Technical specifications

    SORTING CABINETS FOR MANUAL EXTRACTION OF WASTE

    The width of the container unit

    mm

    4340

    Height of the container unit

    mm

    2800

    Length of the container unit

    mm

    3000

    Dimensions of the discharge pipes (L x W x H)

    mm

    750 x 400 x 900


    The first and last cabins are closed at the ends by a panel wall with an opening for the passage of the sorting conveyor that passes through the middle of the sorting tunnel.

    On both sides of the conveyor, there are special discharge pipes with a hinged bottom, two discharge pipes for each worker, or four pipes in each cabin. The discharge pipes are used to discharge the sorted, i.e. manually separated material into the sorting boxes under the cabins.

    The pipes also serve as the load-bearing structure of the sorting conveyor. The cabins are ventilated, air-conditioned and equipped with a complete electrical installation (lighting, sound system, signal lights, etc.). The discharge pipes contain a hinged bottom, so each discharge pipe can be opened or closed individually.

    Such a system ensures that the sorted material does not fall into the boxes while the automatic pressure plate is in operation.

    For access to the cabins, steel stairs with a landing were built, one on each side of the sorting conveyor.
